Product appearance

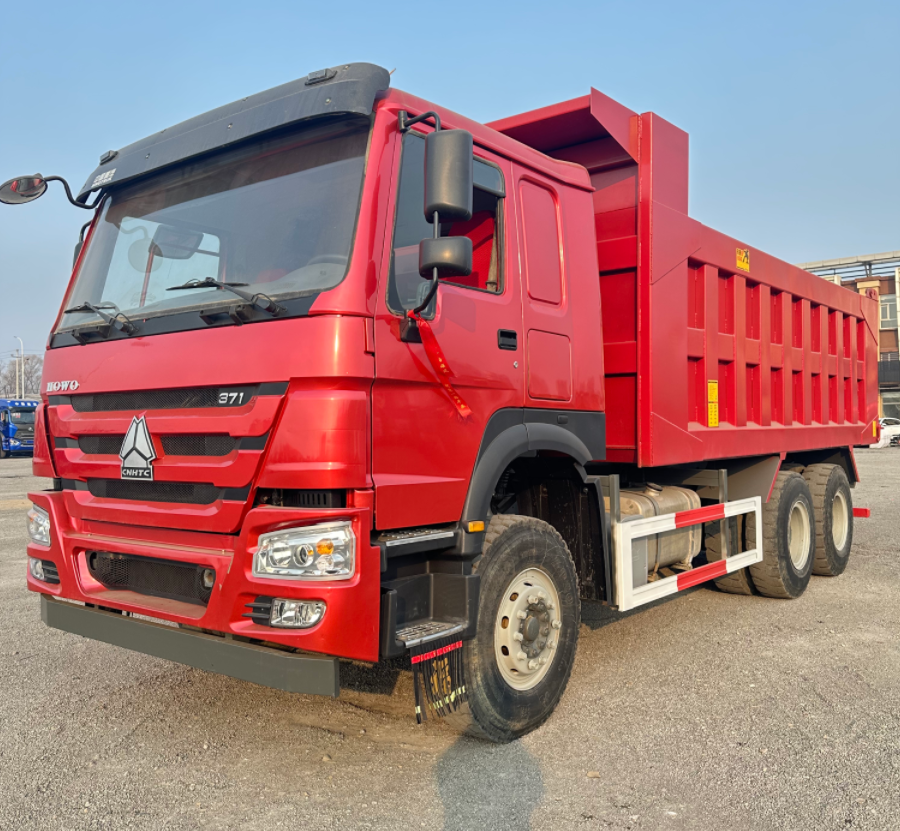

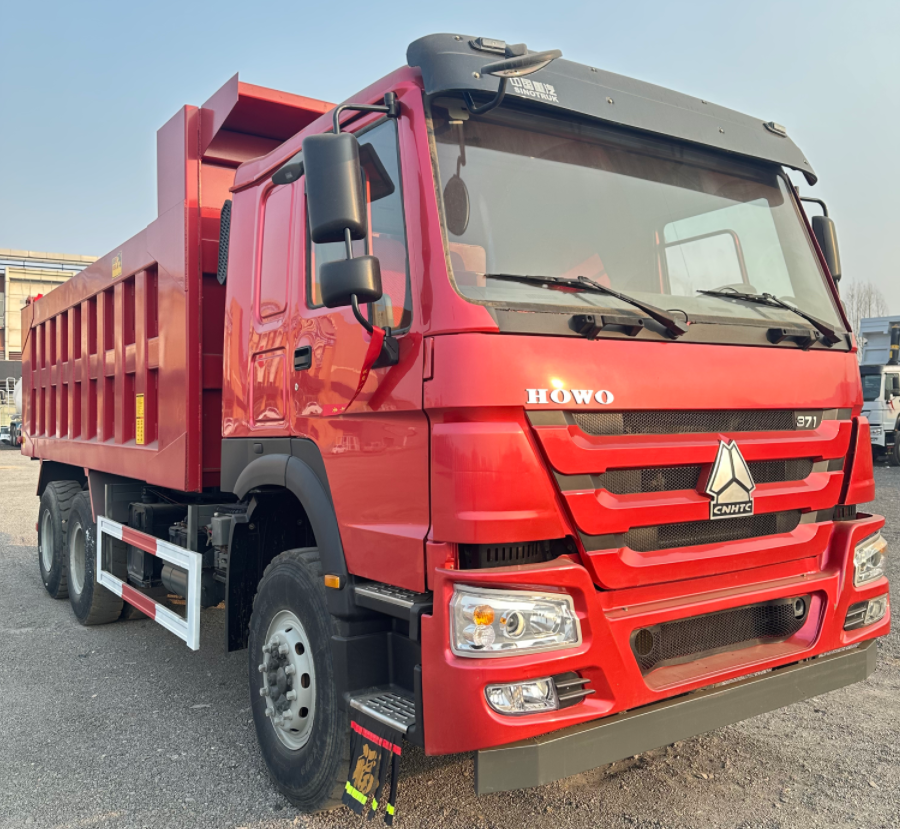

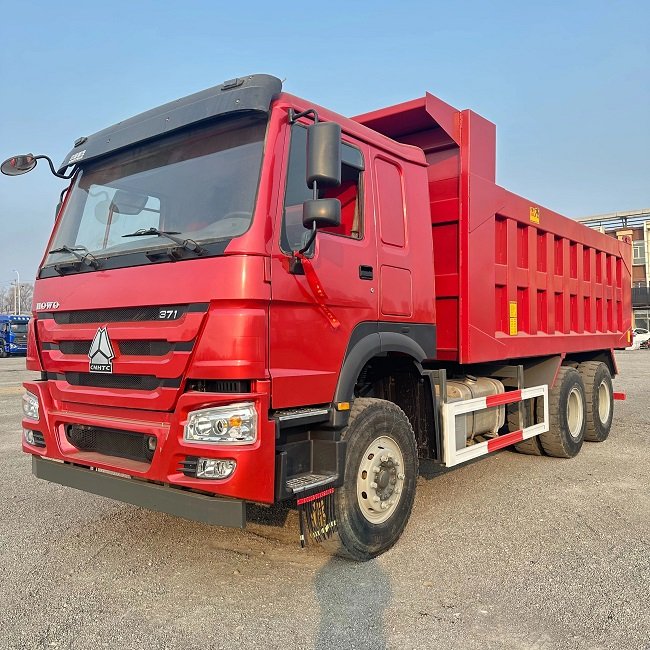

Used HOWO371 dump truck is a near-new truck .
The paint color of the body is various, including original red/white/green/yellow, etc., which is as bright as new, without obvious scratches or rust.
The cockpit glass is transparent and has no cracks.
The frame and chassis structure is complete, clean and rust-free, and the wheels are nearly new.
Used HOWO371 dump truck is a near-new truck as a whole, suitable for mining and infrastructure transportation.
Product core configuration
Power system:

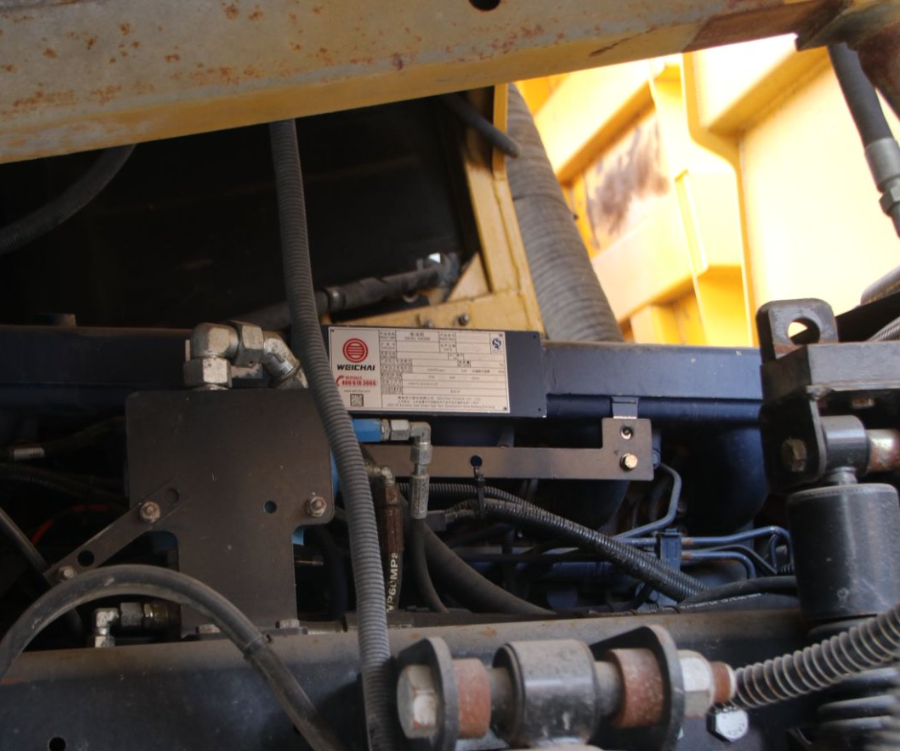

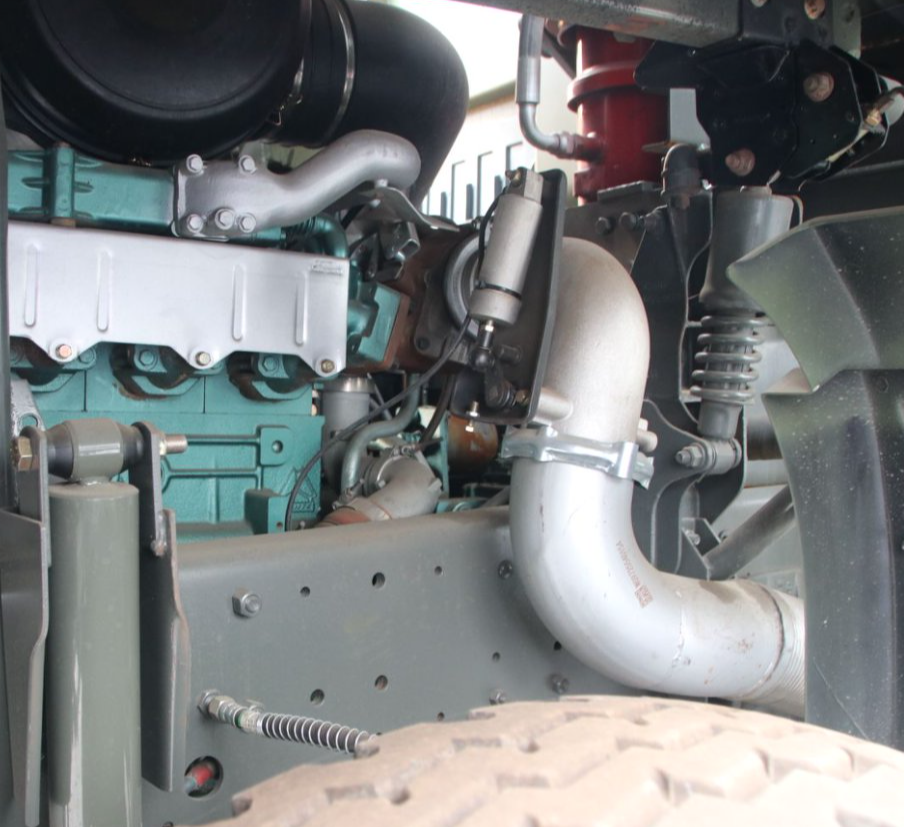

Engine: Equipped with Sinotruk WD615.96NE or WD615.47 large pump engine, with an output power of 371 horsepower and a maximum torque of 1900N·m, it meets the National II/National III emission standards and is suitable for low-sulfur diesel environments.
Transmission: Matching HW19710 or HW19712 manual transmission (10/12 gears), supporting engineering-specific power take-offs, suitable for heavy loads and complex working conditions.
Chassis and Load-bearing:
Frame: Adopts a double-layer frame (8+8mm thickness), with HF9 front axle and AC16 double-stage reduction rear axle (speed ratio 5.45), with a load capacity of more than 30 tons, suitable for mining and infrastructure transportation.
Suspension: Front and rear multi-leaf spring steel plate suspension (10/12 leaves), enhanced impact resistance.
Cargo box and hydraulic system:
Cargo box size: optional 5.4m/5.8m/6.5m length, manganese steel material (bottom 10 side 8 or higher strength), bottom five longitudinal beams reinforced design, strong anti-deformation ability.
Hydraulic lifting: standard Haiwo front top hydraulic cylinder, stable lifting, support high-frequency loading and unloading.
Product advantages
Price competitiveness:
The price of the basic version is significantly lower than similar models of European and American brands, with outstanding cost performance.
Emission and fuel adaptability:
Supports National II/National III emissions, meets the environmental protection standards of emerging markets such as Southeast Asia and Africa, and is compatible with low-quality diesel.
Low maintenance cost:
The large pump engine has a simple structure, strong versatility of accessories, convenient maintenance, and does not need to rely on the electronic control system to reduce the failure rate.
Product market and application scenarios
West Africa: With high load-bearing capacity and durability, it occupies the mainstream market for mining dump trucks.
Southeast Asia: Adapts to high temperature and rainy environments and meets the needs of infrastructure projects.
This truck is suitable for short-distance heavy-load transportation such as mines, ports, and infrastructure, and has outstanding performance in infrastructure projects in Africa, the Middle East and other regions.ojects.
